Vertical protection from sun, wind and unwanted views

BRUDA ZIP Screen

Tensioned fabric guided by side aluminium profiles adds pleasant shade, greater privacy and a clean architectural finish.

OperationManual / motorised

Maximum sizeUp to 6 × 3.8 m

ConfigurationMade to measure

Structure6063-T6

Profile colours3 RAL colours

Fabric colours18 samples

Fabric openness0 / 5 / 10 / 40 %

BenefitsShade · privacy · protection

Protection that becomes part of the architecture

Comfort and privacy without enclosing the space.

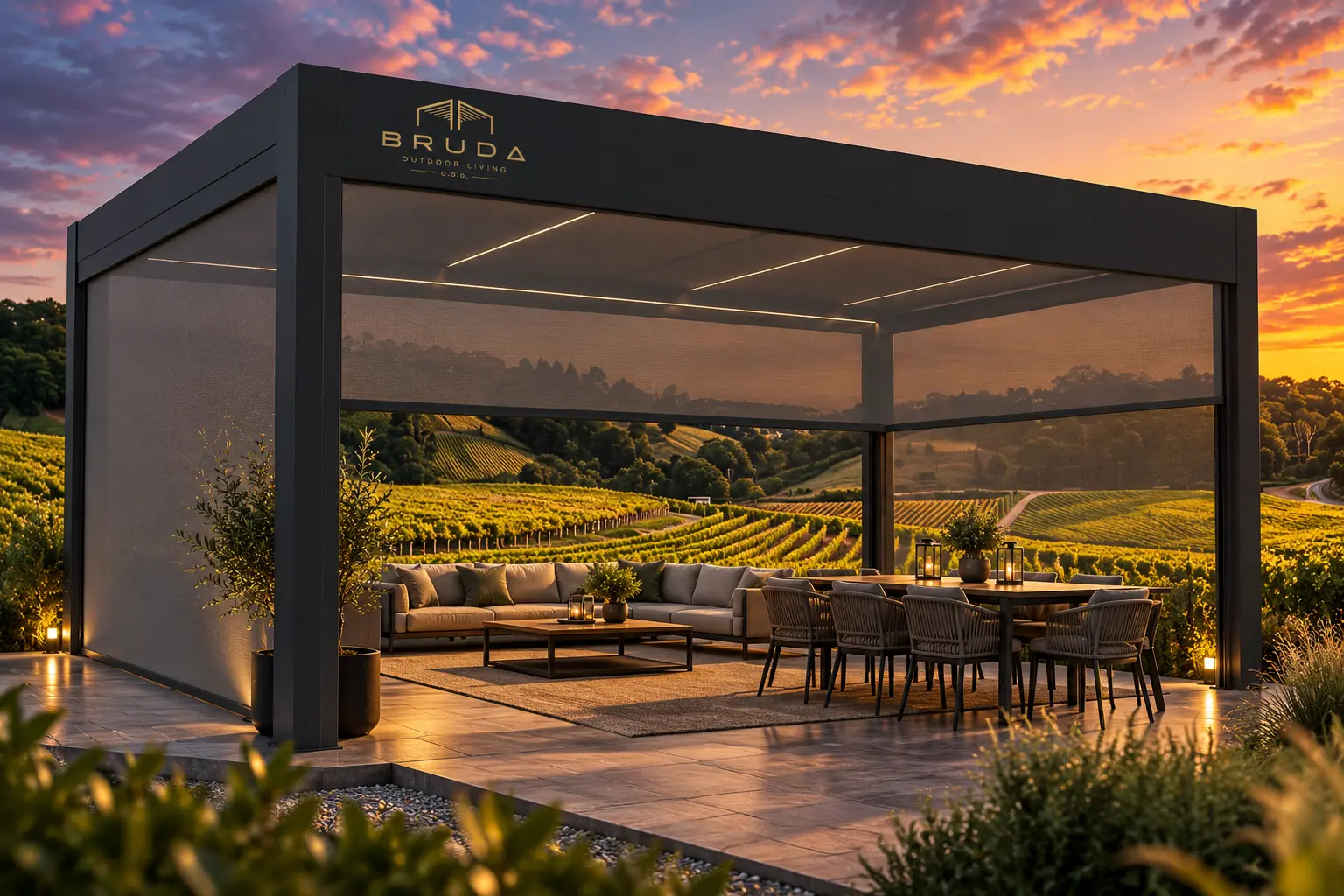

BRUDA ZIP Screen is designed for integration with BRUDA bioclimatic pergolas. The fabric remains tensioned in the side guides, giving the system a calm, clean and considered appearance even when lowered.

Different openness levels let you choose between greater privacy, stronger shading and more light transmission. The system is made to measure with manual or motorised operation.

Aluminium housing · side guides · tensioned ZIP fabric

Current models

The right configuration for every opening.

Three current systems cover everything from standard manual screens to large motorised openings. The final configuration is determined by width, height and installation method.

Manual operation

BRUDA ZIP M105

Standard manual system for small and medium-sized openings.

Standard: 2700 × 2355 mm
3700 × 2355 mm
Made to measure: width over 800 up to 4000 mm
height up to 2800 mm

Motorised operation

BRUDA ZIP C105

Motorised system with remote control for everyday comfort.

Made to measure: width over 1100 up to 4000 mm
height up to 2800 mm
Drive: Manufacturer-designed electric motor

Large motorised openings

BRUDA ZIP C125

A more robust system with multiple configurations for demanding dimensions.

Maximum width: up to 6000 mm
Maximum height: up to 3800 mm

The maximum BRUDA ZIP C125 dimensions depend on the selected configuration and are confirmed for each opening.

Made to measure Up to 6 m wide. Up to 3.8 m high.

Sized to the opening

The screen adapts to the space.

Each BRUDA ZIP Screen system is selected for the actual opening and intended use. This ensures correct fabric tension, reliable guidance and a clean interface with the pergola structure.

two standard manual sizes for BRUDA ZIP M105
made-to-measure production for all three models
multiple configurations for large openings

Aluminium structure

Robust profiles. Precise guidance.

The load-bearing components are made from 6063-T6 aluminium. The upper housing and roller tube dimensions are selected according to the model and configuration.

Upper housing105 × 110 mm
or 125 × 125 mmDepending on model

Side guide48 × 54 mm1.5 mm thickness

Bottom profile32 × 56 mm1.8 mm thickness

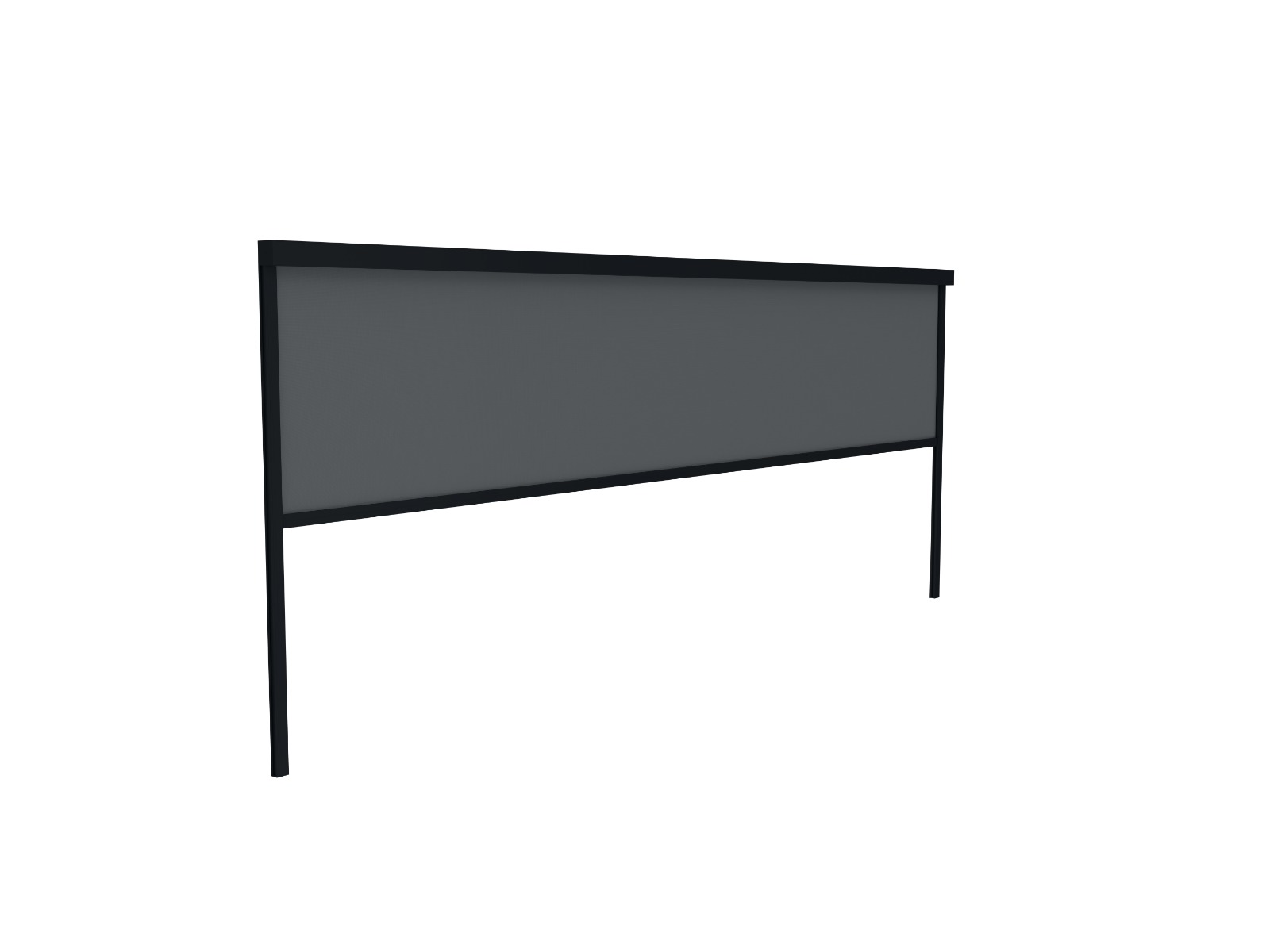

Position of the aluminium profiles and their specified dimensions.

01 / Smaller housing105 × 110 mm

6063-T6 aluminium · 1.6 mm thickness

02 / Larger housing125 × 125 mm

6063-T6 aluminium · 2.0 mm thickness

03 / Side guide48 × 54 mm

6063-T6 aluminium · 1.5 mm thickness

04 / Bottom profile32 × 56 mm

6063-T6 aluminium · 1.8 mm thickness

Aluminium roller tubes Ø 85 mm / Ø 66,5 mm

The tube dimension depends on the system configuration.

Aluminium profile colours

Three standard RAL colours.

Standard colours coordinate with BRUDA pergola models. Other RAL colours are available to order.

RAL 7016Matt Grey

RAL 9016Matt White

RAL 9005Matt Black

Other RAL coloursMade to order

Fabric samples

Choose light, shade and privacy.

The samples show different colours, textures and openness levels. Lower openness provides more privacy and shading; higher openness allows more light and outward views.

0 %maximum privacy

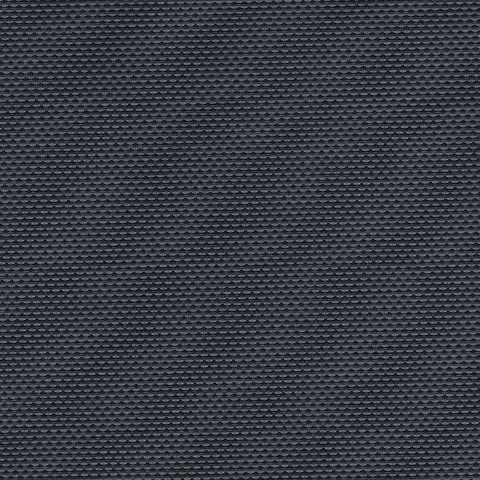

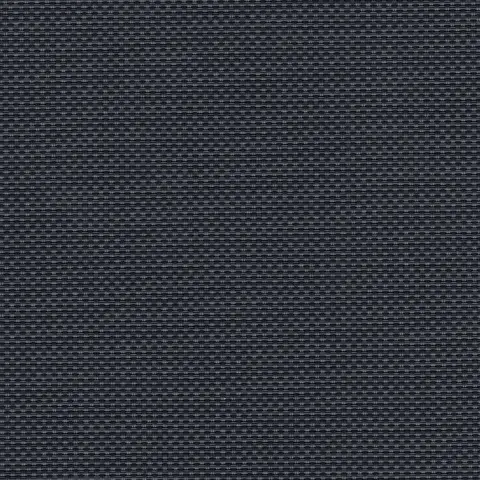

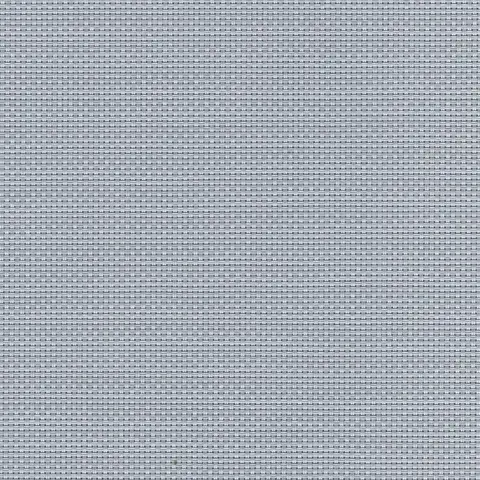

5 %balanced shading

10 %more light transmission

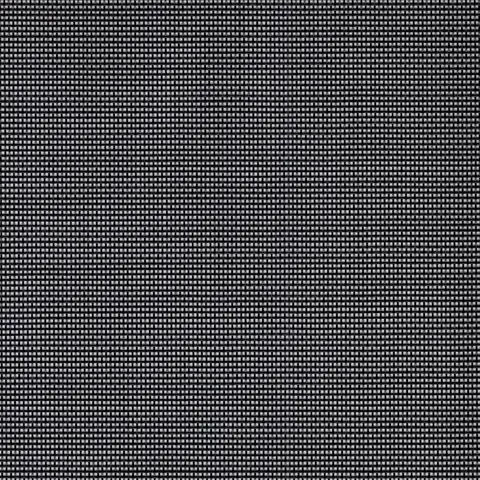

40 %most open weave
