RAL 7016Matt Grey
Aluminium walls and sliding louvre systems
BRUDA Stella
Greater privacy, pleasant shade and added protection for your outdoor space. Fixed, adjustable and sliding options allow the system to be tailored to the pergola architecture and how you use it.
Aluminium6063-T5
ConfigurationMade to measure
SystemsFixed / adjustable / sliding
Tracks2- or 3-track system
Louvre coloursRAL colours + Teak woodgrain
BenefitsPrivacy · shade · protection
A space made to measure
The right balance of shade, light and privacy.
BRUDA Stella completes the pergola with a clean architectural aluminium wall. Depending on your needs, choose permanent shading, an adjustable louvre angle or sliding panels that open whenever you want greater access.
All systems are made from aluminium 6063-T5 and sized to suit each individual opening.
Colours and appearance
Matched to the pergola or highlighted with a woodgrain finish.
The aluminium profiles and louvres can visually match the pergola structure or create a warm contrast with a Teak woodgrain finish.
Aluminium colours
RAL finishes
RAL 9016Matt White
RAL 9005Matt Black
Optional RAL colourmade to order
Teak woodgrain
The warmth of wood. The benefits of aluminium.
- louvres only in Teak finish
- entire panel in Teak finish
This option is available for BRUDA Stella sliding systems.
Colours shown are indicative and may differ from the physical sample.
Four visual options
Choose how you want to live outdoors.
From permanent shading to a lockable sliding wall. Each solution has a clear purpose and a consistent, considered appearance.
01Fixed solution
BRUDA Stella-61 Fixed
BRUDA Stella-61 Cross
Fixed louvres for privacy and shade
Permanent shading without moving louvres. BRUDA Stella-61 Cross differs from BRUDA Stella-61 Fixed through its distinctive oval crossbars.

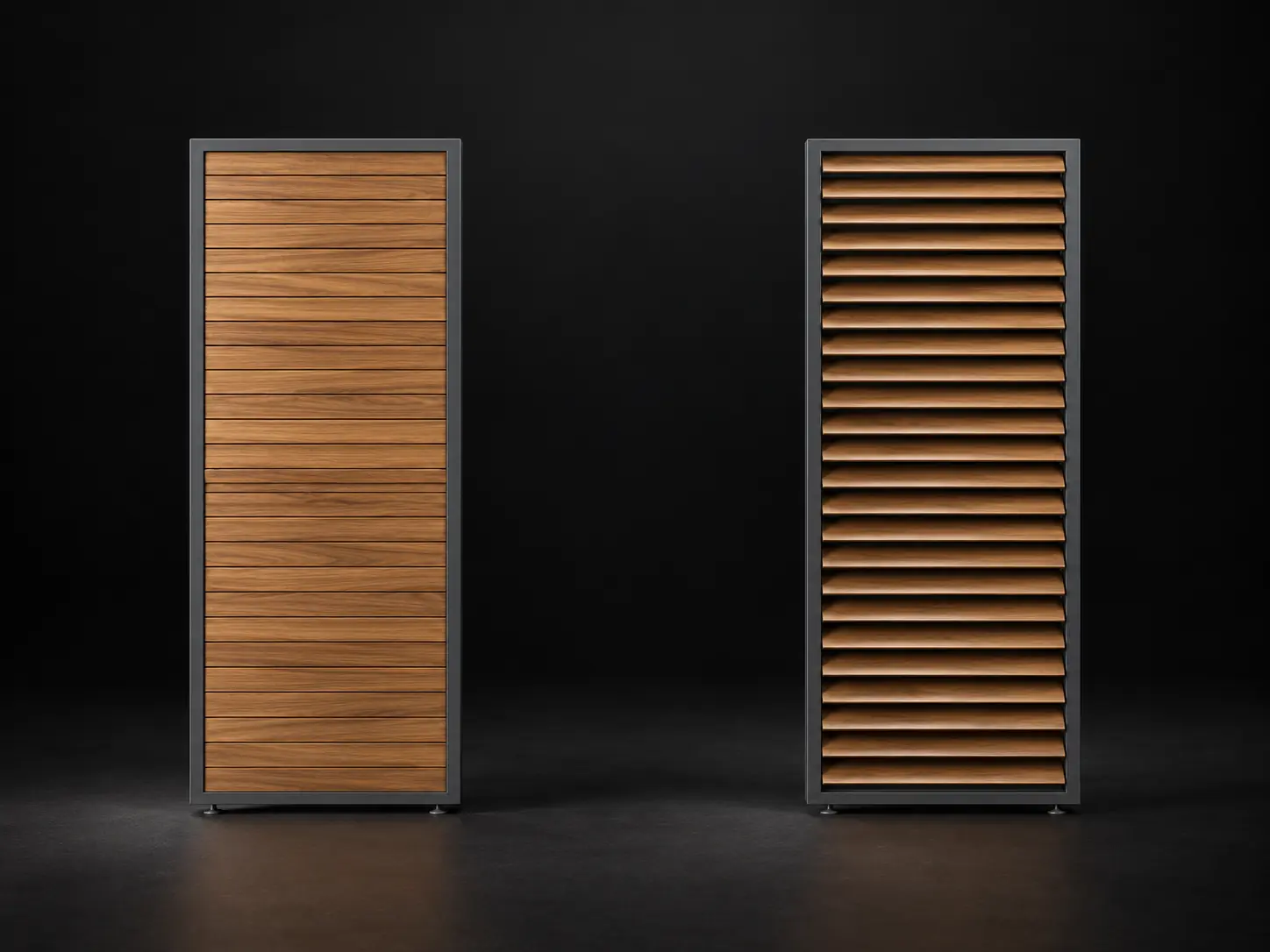

02Adjustable solution
Adjustable louvres for light control
Adjust the louvre position to control privacy, light and shade while the panel remains in place.

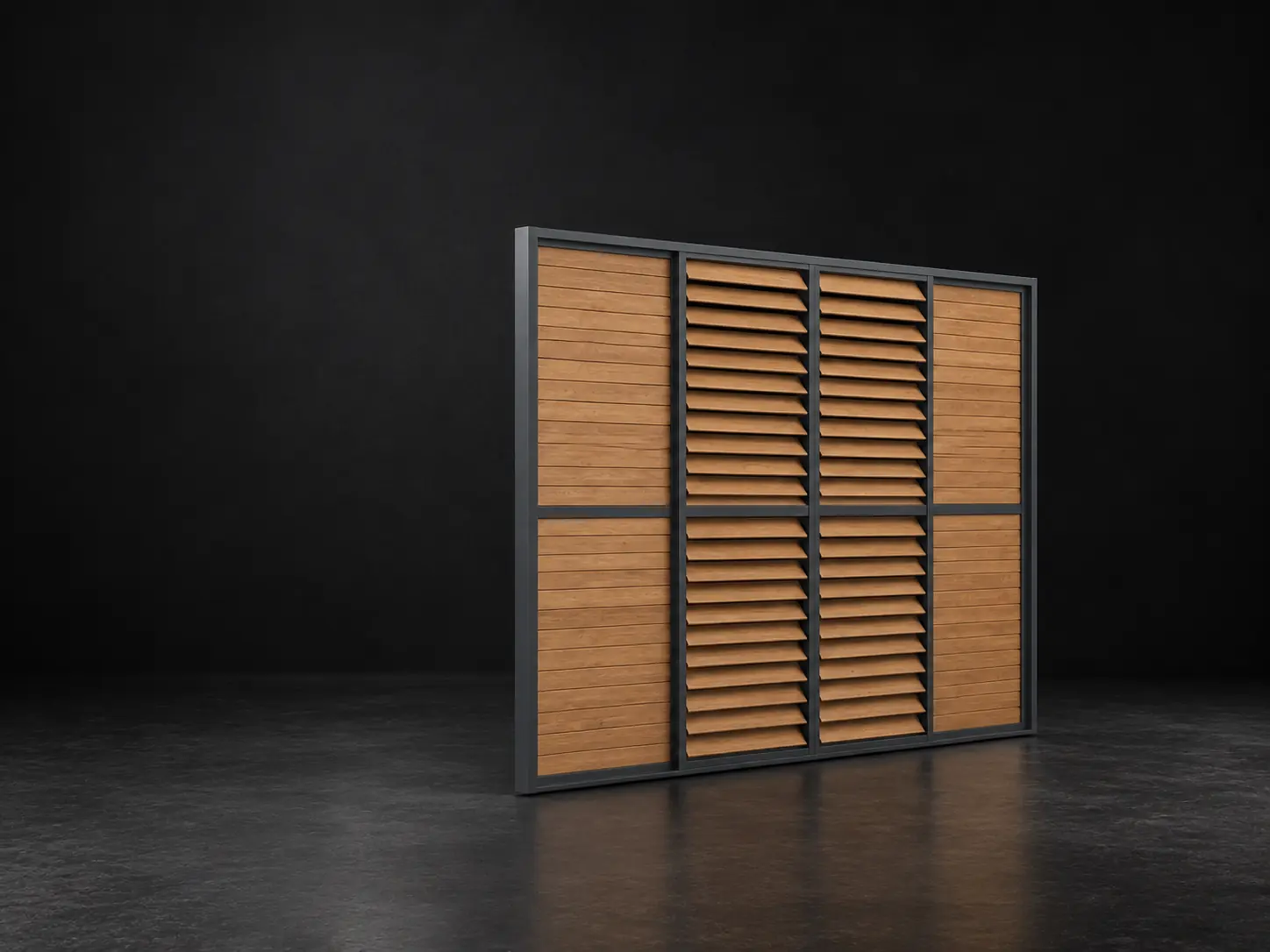

03Sliding solution
Sliding panels with adjustable louvres
A combination of shading and a sliding wall without a lock. The multi-track system lets you position the panels to suit the moment.
04Lockable sliding solution
Sliding panels with adjustable louvres and locking
BRUDA Stella Slide Pro adds a locking system to BRUDA Stella Slide. Other features are tailored to the selected configuration.
Technical louvre section
Aluminium louvre
The louvre section is shown with its original dimensions.
Models and dimensions
Five solutions, made to your selected dimensions.
Final width and height are determined by the selected model, opening and installation method.
| Model | Configuration | Panel width | Height | Key feature |
|---|---|---|---|---|
| BRUDA Stella-61 Fixed | fixed louvres | 300–1.500 mm | 220–2.800 mm | with or without feet |
| BRUDA Stella-61 Cross | fixed configuration | 300–1.500 mm | 220–2.800 mm | oval crossbars |
| BRUDA Stella-65 Adjustable | adjustable louvres | 400–1.350 mm | 500–2.700 mm | adjustable louvre position |
| BRUDA Stella Slide | sliding panels | 400–1.350 mm | 500–2.700 mm | multi-track system without lock |
| BRUDA Stella Slide Pro | sliding panels | 400–1.350 mm | 500–2.700 mm | multi-track system with lock |
All listed models are made from 6063-T5 aluminium. The dimensions of each configuration are confirmed when the quotation is prepared.
BRUDA Stella Slide tracks
A multi-track system for smooth panel movement.
The choice of a 2- or 3-track system depends on the number of panels and how they stack. Technical dimensions allow precise planning of the installation next to the pergola structure.
system width
corresponding profile dimension
system width
corresponding profile dimension
Available configurations
Tracks and number of panels
| Tracks | Panels |
|---|---|
| 2 tracks | 2 panels |
| 2 tracks | 4 panels |
| 3 tracks | 3 panels |
| 3 tracks | 6 panels |
Made-to-measure BRUDA Stella
Open your outdoor space exactly as much as you wish.
Send us the opening dimensions, preferred model and colour or Teak finish. We will prepare the right configuration for your pergola.
